Get creative with this unique Vintage Style Instant Film Camera DIY Kit. Craft a camera that captures nostalgic memories, pinhole-style!

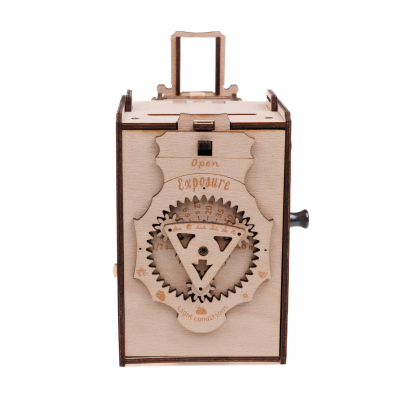

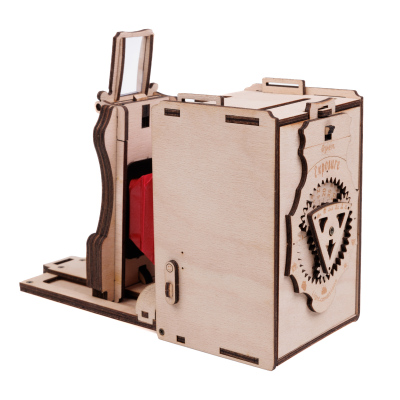

Combining classic design with environmentally friendly materials, a manual development mechanism, bellows, and an exposure calculator.

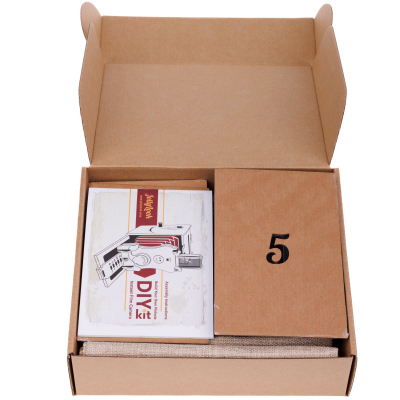

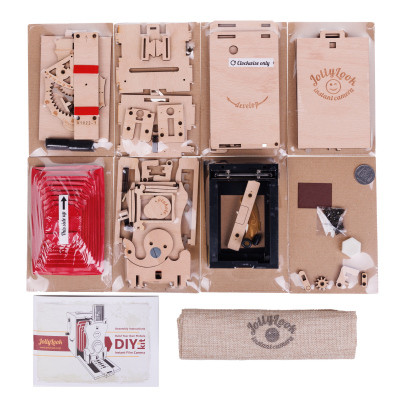

The Jollylook Pinhole DIY Kit includes:
1) Parts - 65 pcs.
2) Bellow - 1 pcs.
3) Fresnel lens - 1 pcs.
4) Pinhole - 1 pcs.
5) Manual Development unit with metal crank - 1 pcs. (80x120x30 mm)
6) Felt light shield with magnet - 1 pcs.
7) Screws 6mm - 48 pcs.
8) Elastic bands for locks - 7 pcs.
9) Wooden locks - 5 pcs.
10) Tripod nut 1/4" - 1 pcs.
11) Wax - 1 pcs.
12) Sand paper - 1 Pcs.
13) Spare parts - 5 pcs.
14) Instructions manual - 1 pcs.
Weight: 635 g.
Step-by-step sssembling video

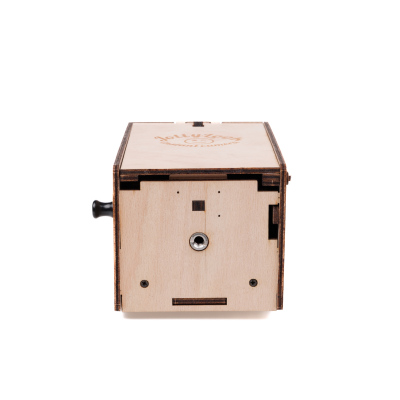

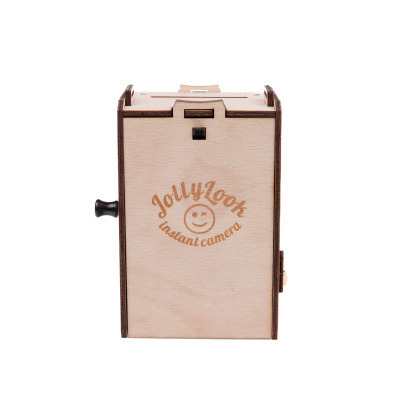

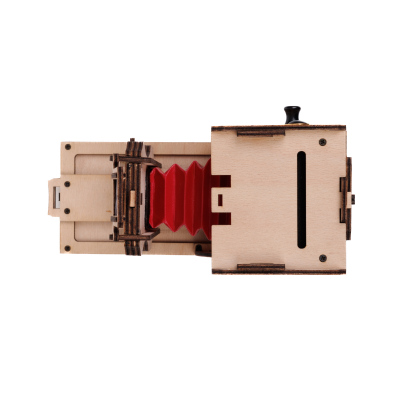

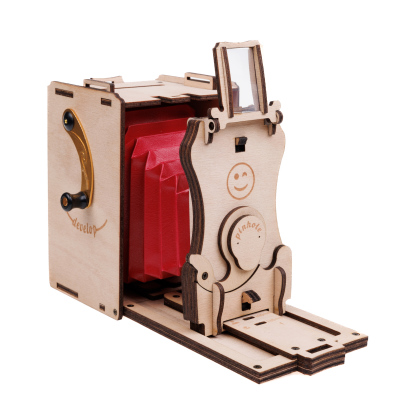

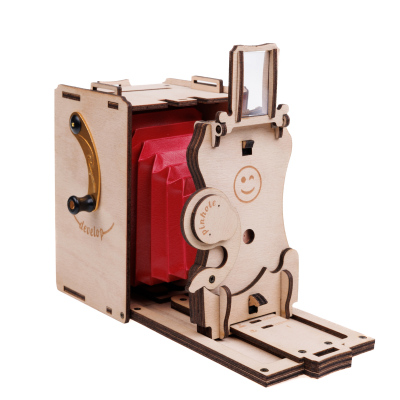

The assembled Pinhole camera technical specifications:
Dimensions folded: 150х100х80 мм
Dimensions unfolded (working) position: 150х100х215 мм
Viewfinder: Fresnel lens
Made of: Easily recyclable, biodegradable natural wood fiber material.
FSC certified.

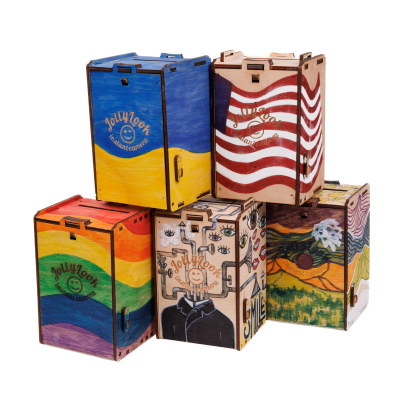

Paint: Natural oils and waxes, renewable raw materials of plant origin.

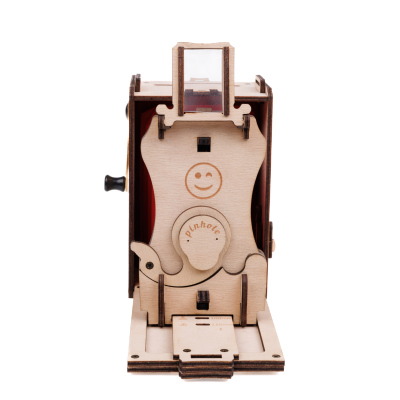

Pinhole diameter: 0,38 mm
Focal length: from 50 mm up to 110 mm.
Focus: Pinhole, everything in front of the camera is equally in focus.
Film: Fujifilm Instax mini
Photo size: 62 x 46 mm

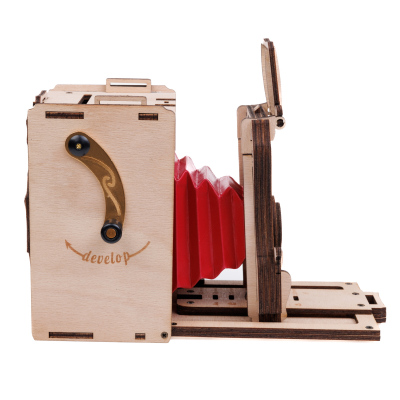

Film development: manual mechanism
Power Supply: not needed, fully mechanical
Weight: 410 g.
